Silicone Coated Fiberglass Sleeve KIRASRI-180

Giá: Liên hệ 0902099161

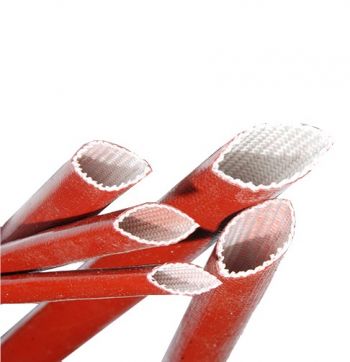

SILICONE RUBBER COATED FIBERGLASS SLEEVING

KIRASRI - 180 VPI is Silicon Elastomer Coated Fiberglass flexible Sleeving with an outer layer of Fiberglass braid. The over braid bonding process adheres the over braid to the silicon coated substrate and minimizes end fray to improve assembly performance and eliminate the long term handling effects of operator dermatitis. UL recognized GRADE “A” component under UL File No. # E324343 (UZFT2) and NEMA TF – 1 Type 5, Complaint.

KIRASRI – 180VPI Silicon Sleeving is resistant to most acids, oils, organic solvents and water. It is also compatible with virtually all Electrical grade varnishes and Impregnation systems suitable for all VPI applications.

CORE APPLICATIONS:

KIRASRI – 180VPI is silicon rubber coated fiberglass sleeving can be used for

  • For Coil and Winding Industry (Coils, Motors, Generators, Transformer)
  • Wind Turbines and Solar Panels
  • Industrial Fields
  • Dip Tank Operations


PROPERTIES

THERMAL CLASS

Class “H”

THERMAL TEMPERATURES

-60°C to +180°C

DIELECTRIC STRENGTH

4000 Volts - 7000 Volts

COLOR: Black & White, other colors upon request

SIZE: 3.0mm to 25mm

FEATURES

  • High Flexible Routing.
  • Extreme Abrasion Resistance.
  • Superior Electrical properties.
  • Heat-set, cuts cleanly and will not fray.
  • Non-corrosive and extremely fungus resistant.

STANDARDS

  • IEC 60684
  • NEMA TF 1 T7
  • ASTM D-372
  • ASTM D-350
